Adds a single Theme selector (Settings -> Visuals) to the C3X and comma
four UIs, driven by one BPThemePack param and one shared entry list, so
theming behaves identically on both devices. The selector carries Off,
the existing 8-Bit Racer theme (its separate toggle is absorbed), and
ten bundled seasonal packs covering New Year's through Christmas.
A pack is a directory of plain assets - no code:
colors/colors.json Path, PathEdge, LaneLines, LeadMarker,
RoadEdges, Accent, Background (all optional)
sounds/<name>.wav alert-sound overrides by filename
steering_wheel/wheel.png wheel icon override
Themed views render as full scenes: Background paints a sky gradient
whenever Minimal Driving View hides the camera, the path ribbon runs a
full-strength gradient, lane lines and road edges use the wider
minimal-view geometry with a stronger glow halo, the torque-bar fill
and set-speed value take the Accent color, and the vision-lead chevron
and info box follow LeadMarker.
The C3X page selects via a scrollable option dialog and the MICI page
via a cycling toggle - both built from the same entries, so any number
of packs stays inside the widget. Users can drop additional packs into
/data/bp_themes over SSH; malformed pieces degrade gracefully to stock
(bad wavs fall back to stock sounds, missing colors keep stock colors).
Bundled palettes are original; wheel icons are from OpenMoji
(CC BY-SA 4.0, credited in the README).
Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
ghbarker
force-pushed
the
unified-theme-selector
branch
from
July 22, 2026 08:23
61886fb to
39623fe
Compare

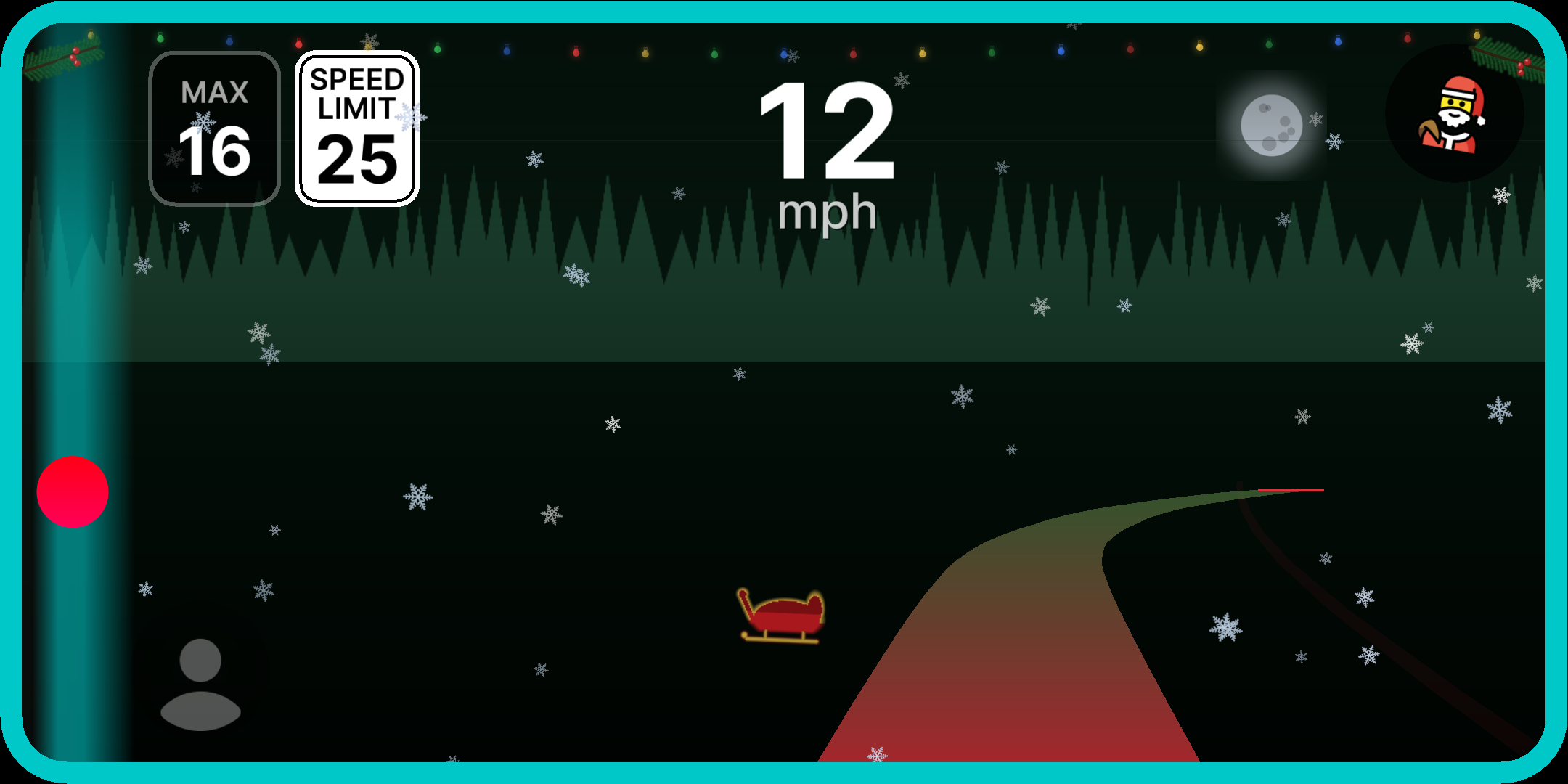

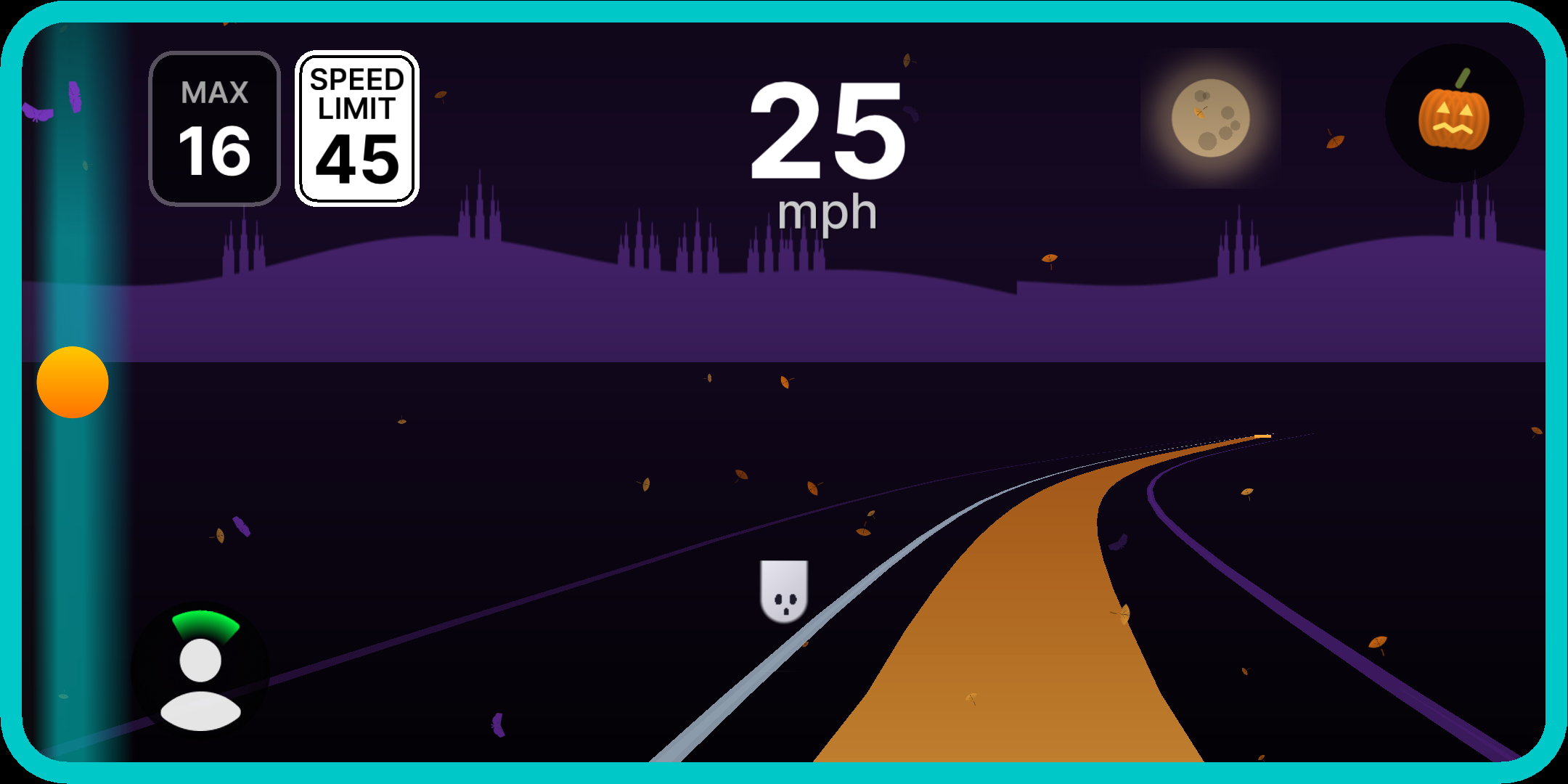

…ecture Builds on the theme selector: a SceneBase interface (background pass before the model render, foreground pass under alerts, replaces_road/replaces_hud capability flags) unifies every theme kind. Rad Racer participates through a capability adapter — its drawing is untouched, the ad-hoc dispatch checks are gone. Seasonal packs get data-driven scenes from a per-pack scene.json: particle layers (falling snow, rising hearts, tumbling leaves, fluttering bats, firework bursts), static decor (string lights, garlands, bunting, corner pieces) and a sky treatment — full strength in Minimal Driving View, subtle over the live camera, alerts always on top. Sprites are procedurally rendered signed-distance fields (no bundled images), tinted per particle at draw time. Budgets are hard-capped and validated; a pack without scene.json is colors-only, exactly as before. Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>

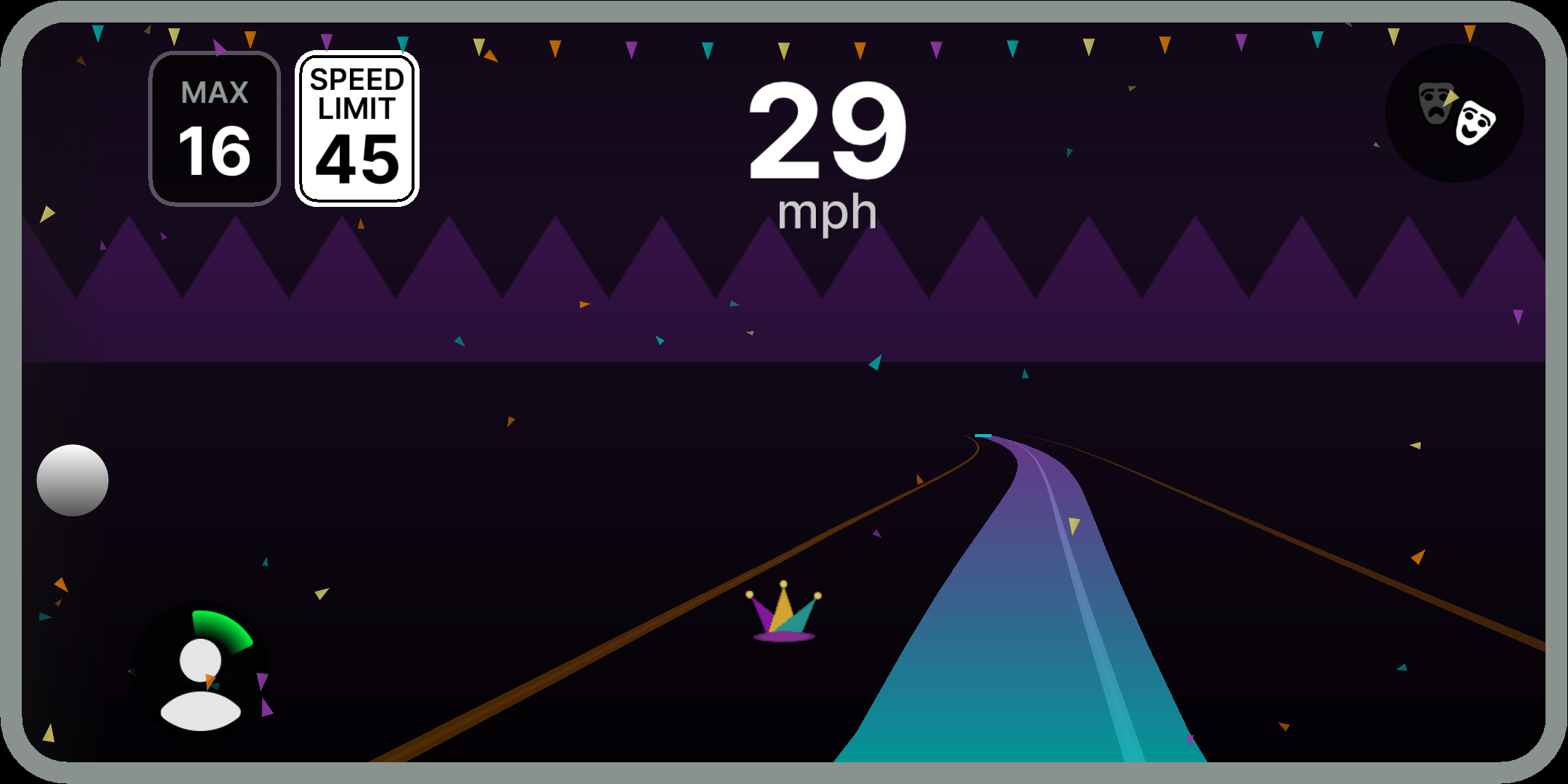

BPThemeAutoSeasonal (default off): during a holiday window the matching pack takes over automatically; outside windows the manual Theme selection applies unchanged. Every pack is treated equally — the window lives in the pack itself (<pack>/season.json, fixed MM-DD or anchored to easter/us_thanksgiving), so user-dropped packs participate and shadow bundled ones by name. Overlaps go to the shortest window (April Fools inside Easter week). Toggle on both settings pages; sunnylink gains the toggle plus the full Theme selector, replacing the stale BPRadRacerTheme entry. Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>

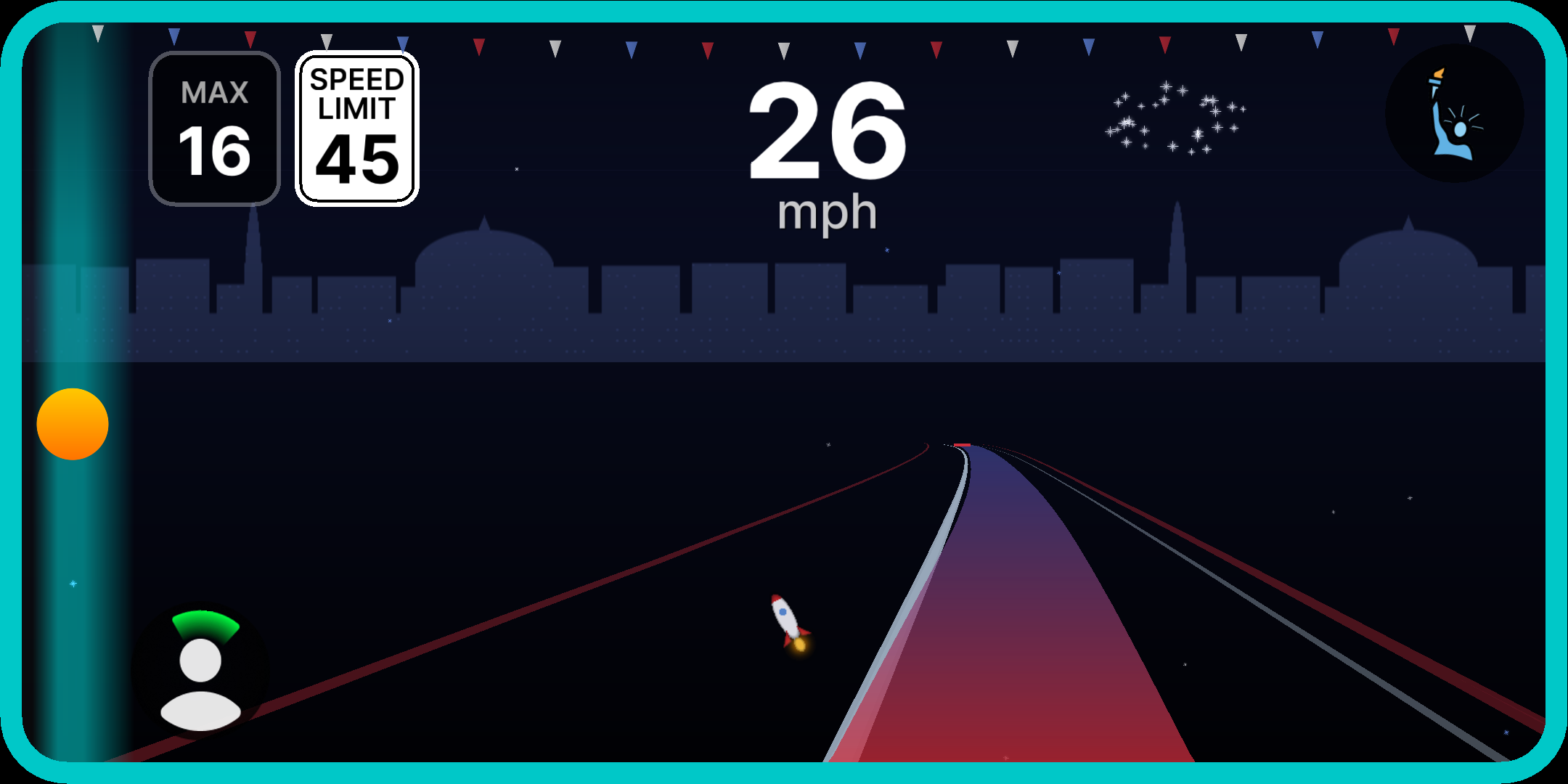

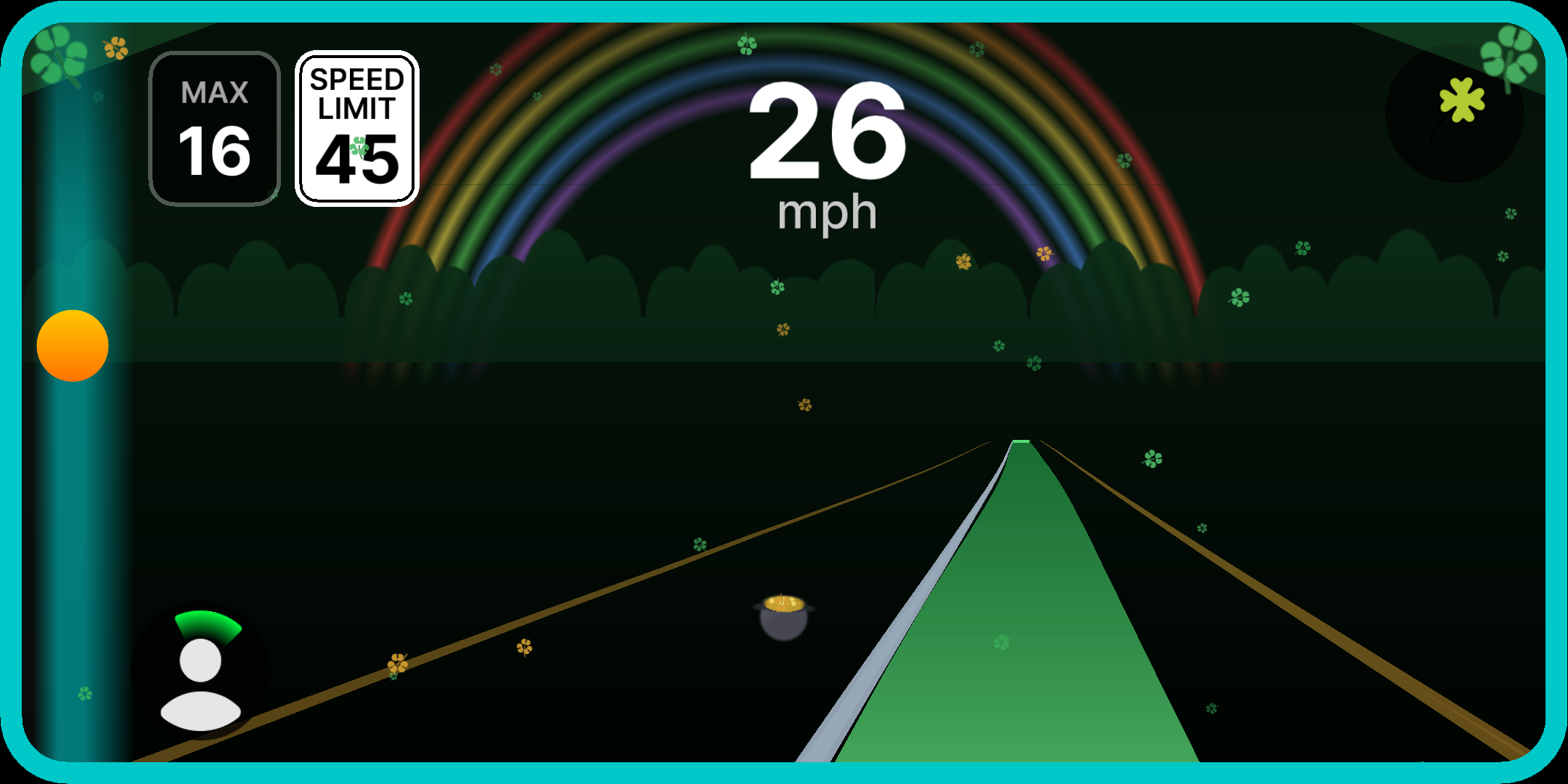

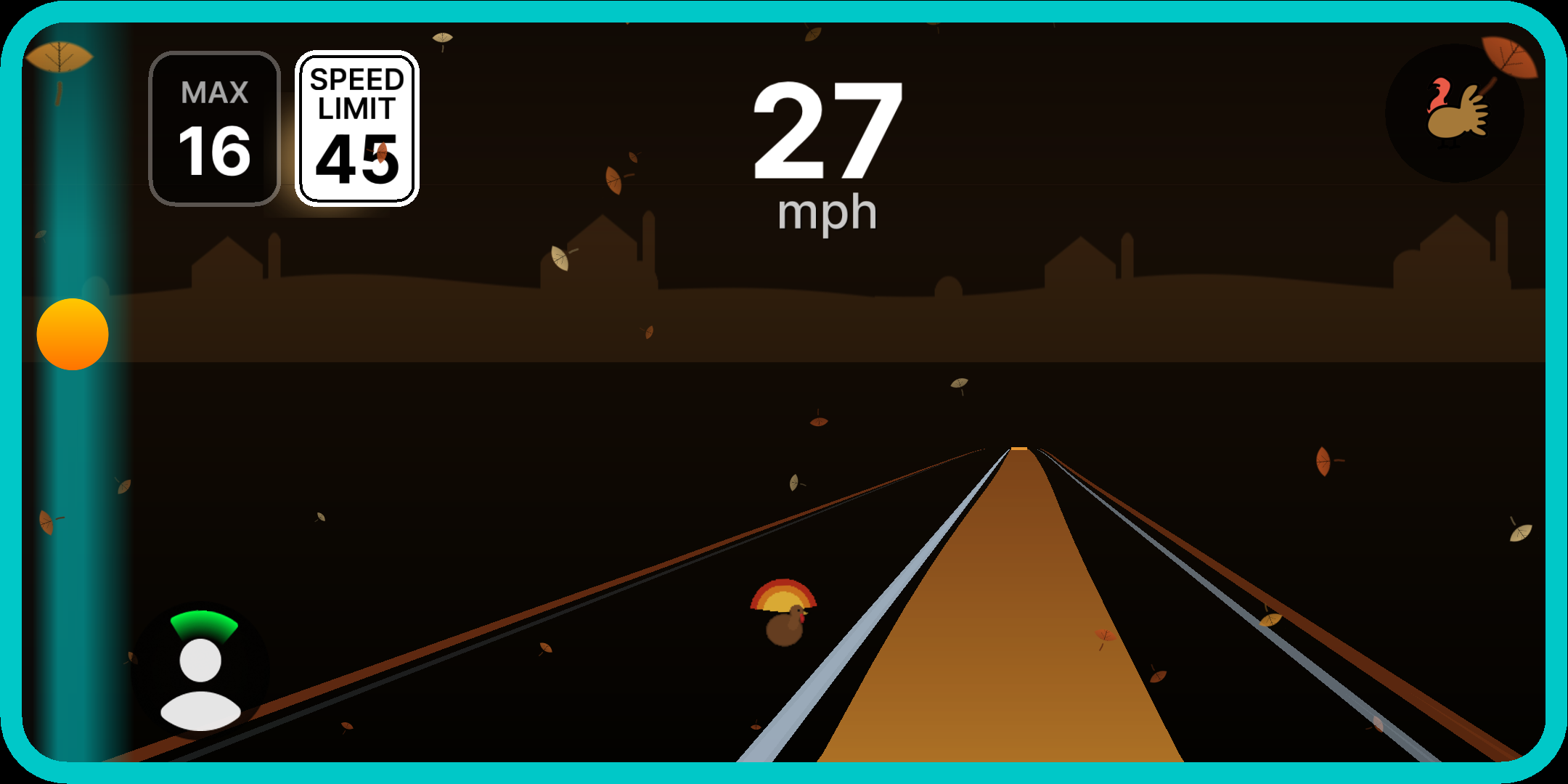

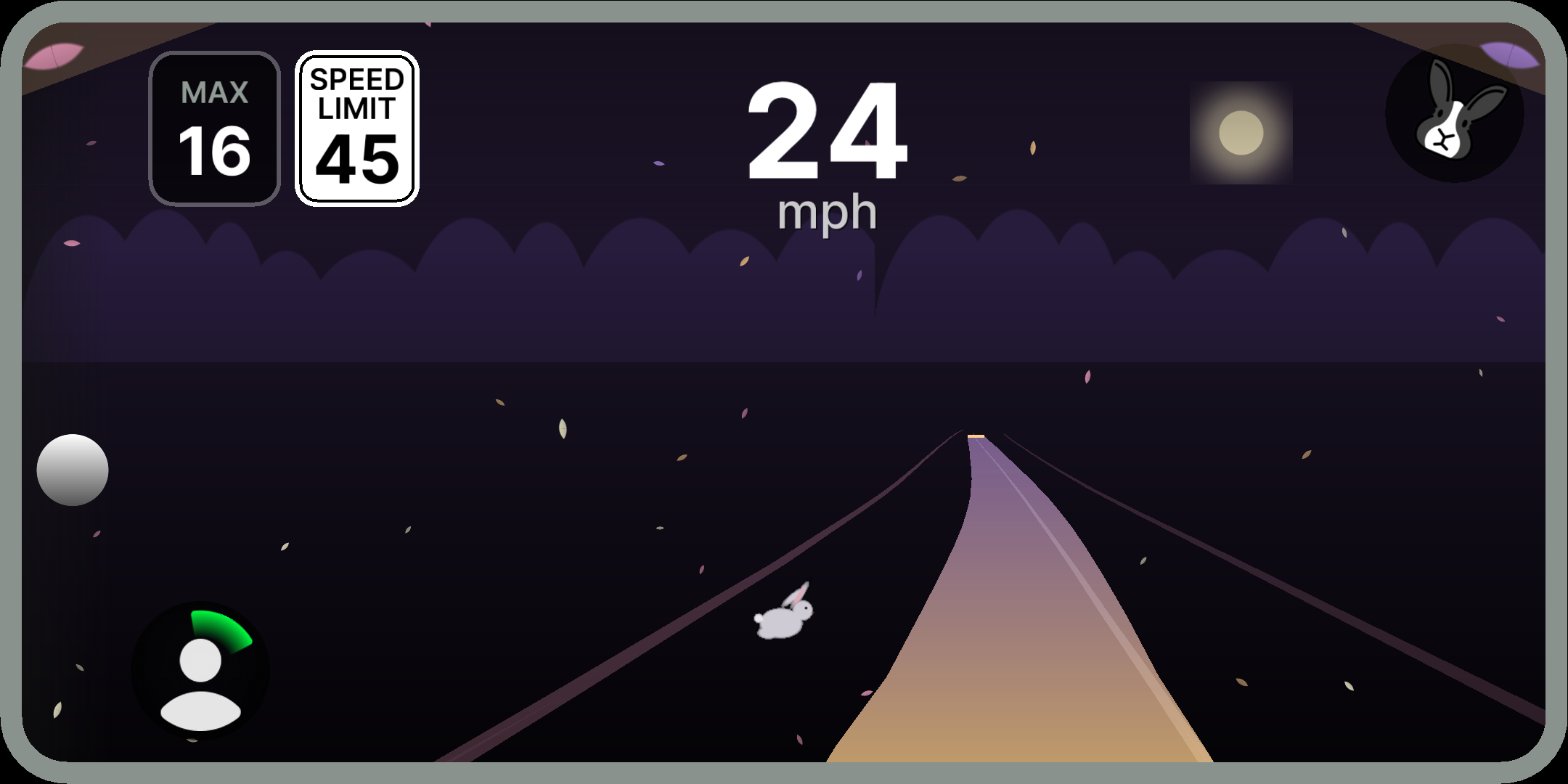

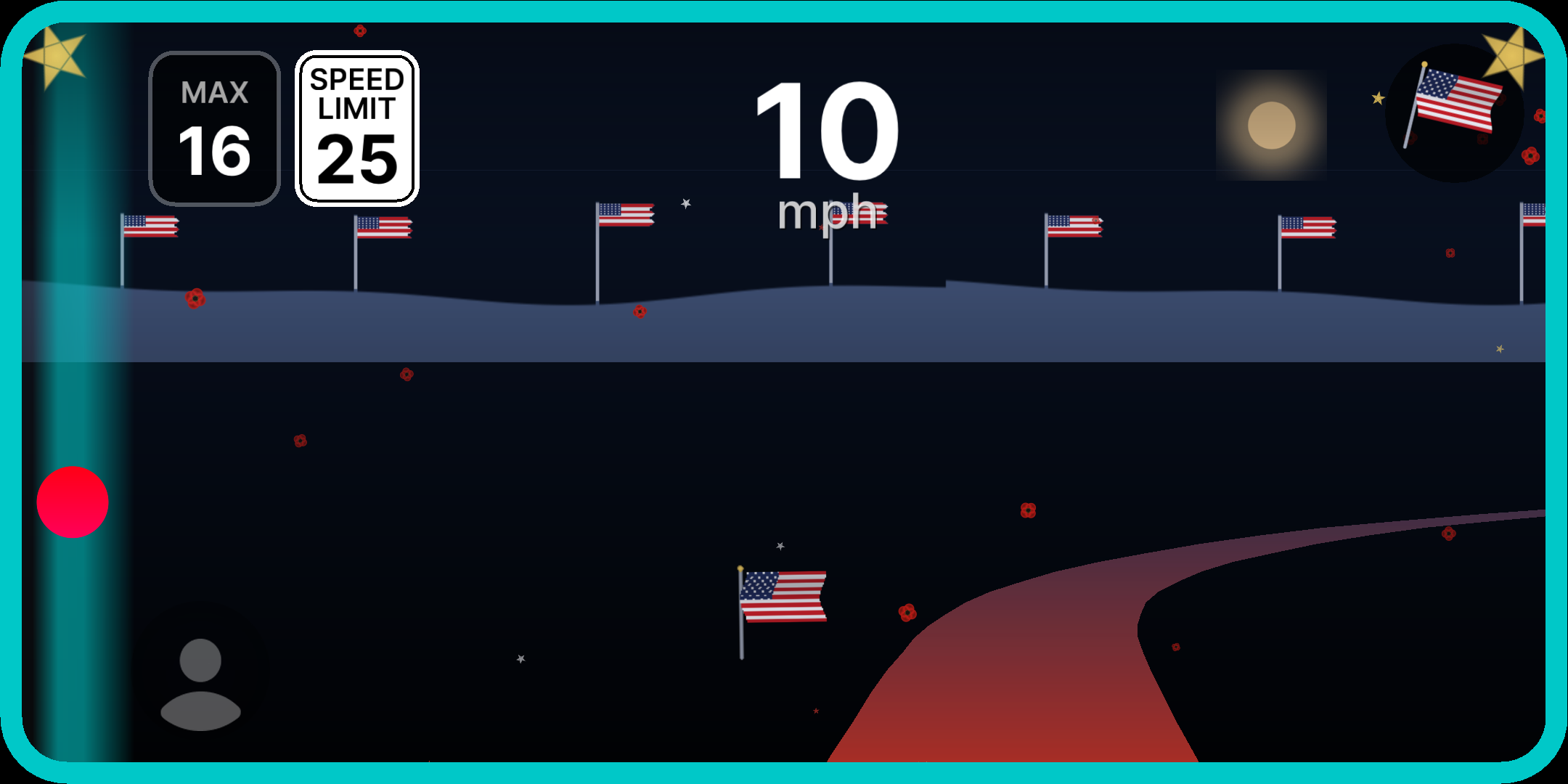

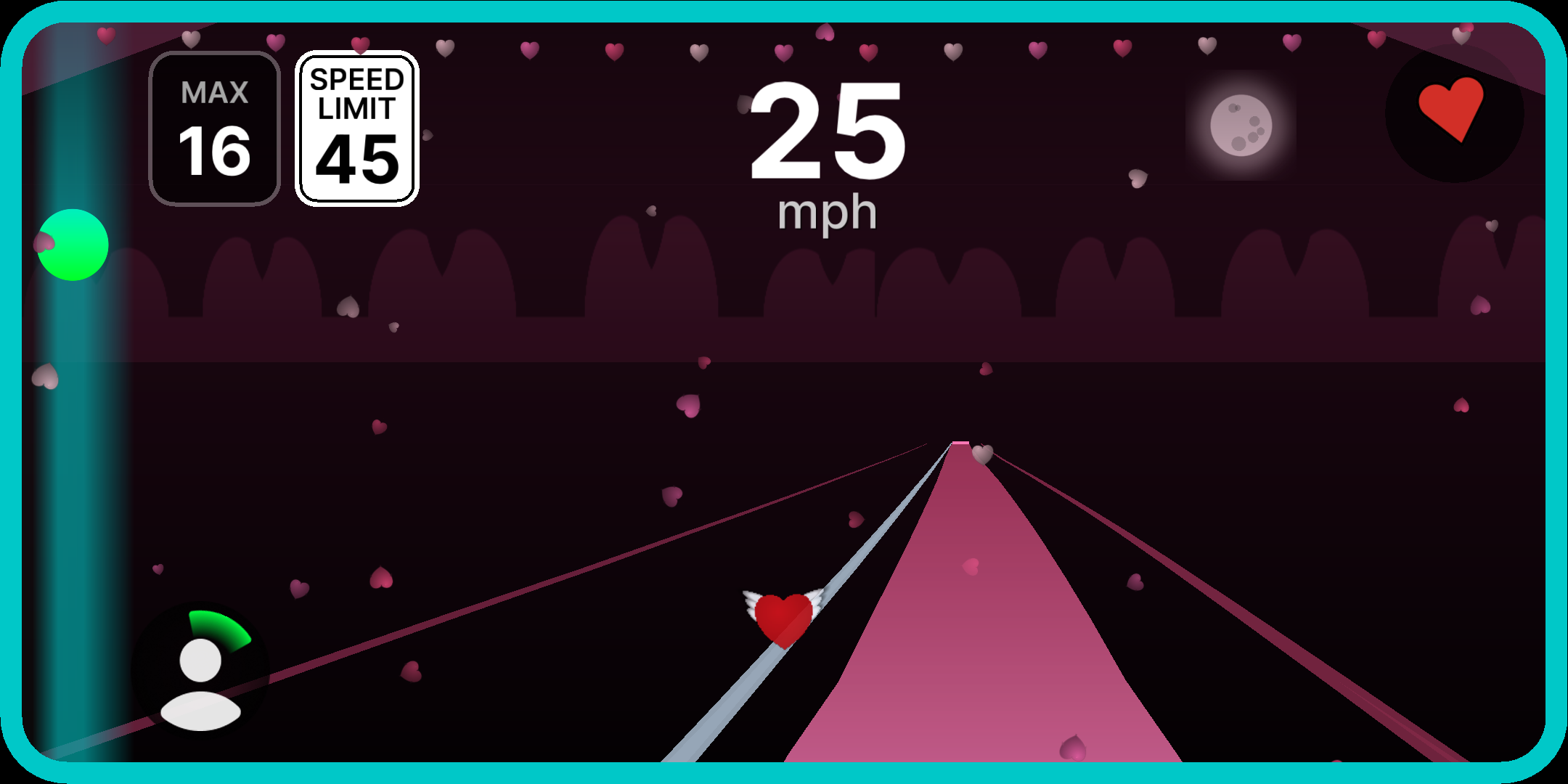

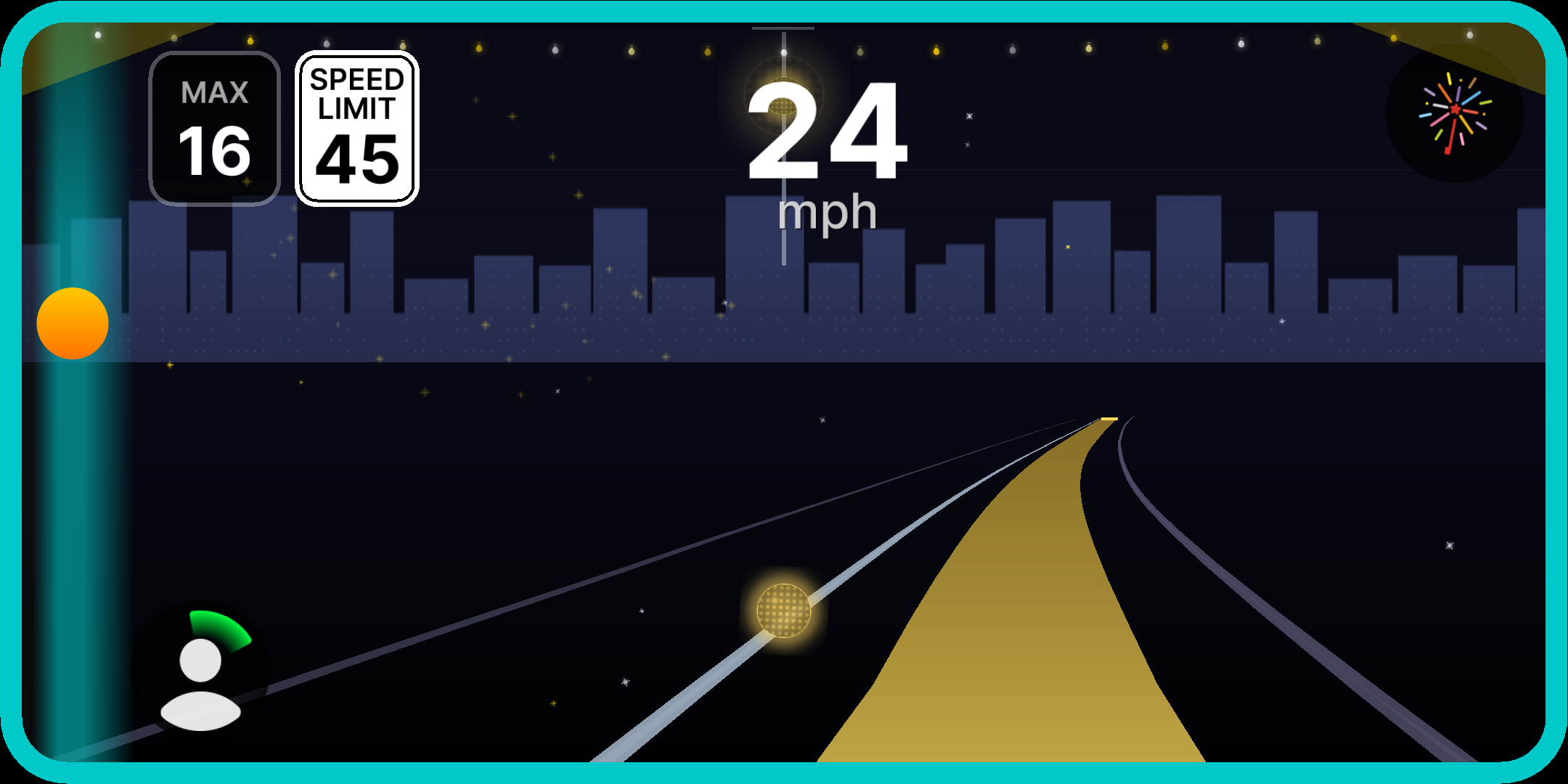

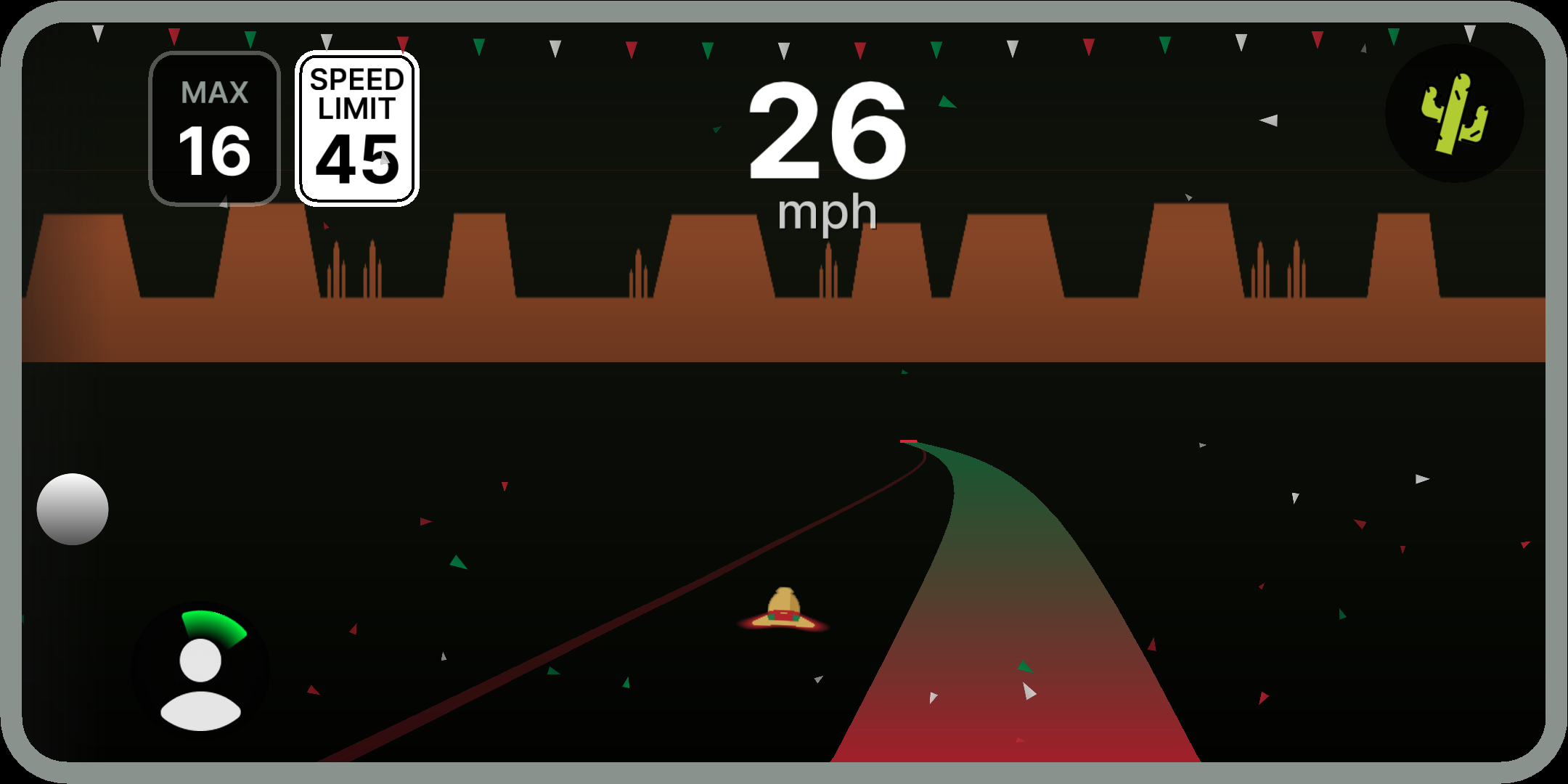

Every pack's horizon now belongs to its holiday: heart-summit mountains (valentines), giant egg hills (easter), shamrock mounds (st patricks), farmland with barns and silos (thanksgiving), capitol dome + monument with lit windows (july 4), saguaros among the mesas (cinco), lit-window skyline (new years). The rainbow's legs dissolve into horizon mist instead of hard-clipping. New Year's gains a looping Times-Square ball drop (glowing faceted orb on a pole) and punchier fireworks, as does July 4. New pack: veterans_day (Nov 8-12) — flag-line memorial hillside backdrop, drifting remembrance poppies and gold stars, poppy wheel icon, navy/poppy-red palette. Selector picks it up automatically; sunnylink option added. Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
ghbarker
force-pushed
the
unified-theme-selector
branch
from
July 22, 2026 10:10
39623fe to
c7f5384
Compare
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
Sign up for free
to join this conversation on GitHub.
Already have an account?
Sign in to comment
1 participant
Add this suggestion to a batch that can be applied as a single commit.This suggestion is invalid because no changes were made to the code.Suggestions cannot be applied while the pull request is closed.Suggestions cannot be applied while viewing a subset of changes.Only one suggestion per line can be applied in a batch.Add this suggestion to a batch that can be applied as a single commit.Applying suggestions on deleted lines is not supported.You must change the existing code in this line in order to create a valid suggestion.Outdated suggestions cannot be applied.This suggestion has been applied or marked resolved.Suggestions cannot be applied from pending reviews.Suggestions cannot be applied on multi-line comments.Suggestions cannot be applied while the pull request is queued to merge.Suggestion cannot be applied right now. Please check back later.
One
BPThemePackselector drives all theming on both devices: the 8-Bit Racer code theme or one of 11 bundled seasonal packs, each a plain asset directory (colors, sounds, wheel icon, scene) — user packs drop into/data/bp_themes.What each pack gets
BPThemeAutoSeasonal, default off): each pack declares its window inseason.json(fixed dates or anchored to Easter / US Thanksgiving); shortest window wins overlaps; user packs participate equally. Outside windows the manual selection applies.All art is procedural (numpy SDF -> texture at load, no bundled scene images). Sunnylink gets the full Theme selector + the seasonal toggle, replacing the stale

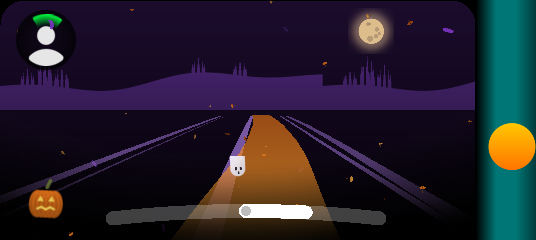

BPRadRacerThemeentry. 34 unit tests cover parsing, clamps, budgets, a 10k-frame allocation check, seasonal date math, and the hero-placement contract.comma 4 (MICI) — same scenes, hero above the torque bar
🤖 Generated with Claude Code
